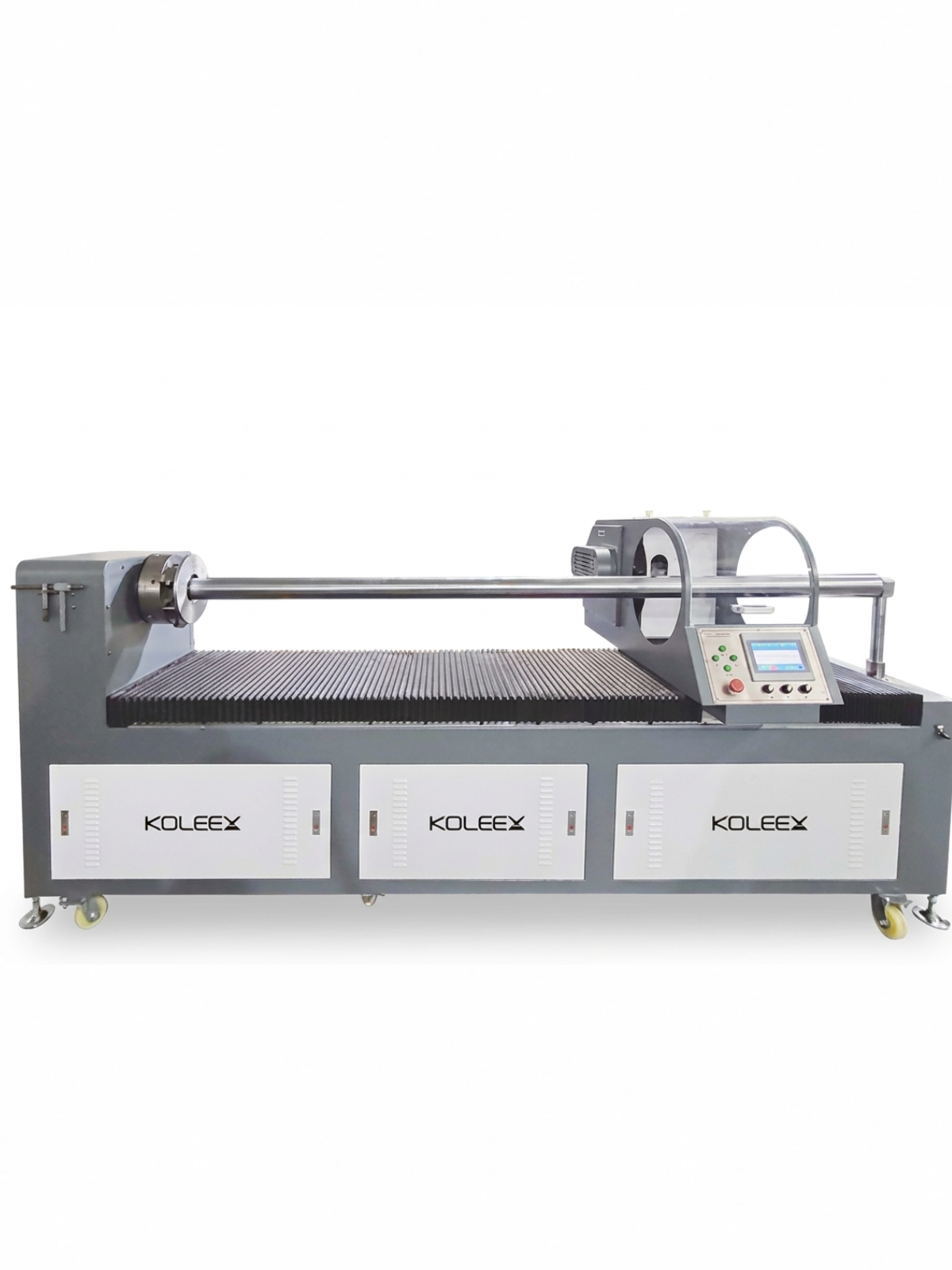

KOLEEX XC-2100AS Automatic Fabric Roll Slitting Machine
The KOLEEX XC-2100AS is an automatic fabric roll slitting machine designed to cut wide fabric rolls into multiple narrower strips in a single, continuous cycle. Built for garment and textile factories that need to convert bulk fabric rolls into precise strip widths, the XC-2100AS combines a dual servo-driven cutting carriage with PLC and touchscreen control, giving cutting-room teams a fast and repeatable way to prepare fabric for downstream production. TSLMAC supplies the XC-2100AS to garment and textile manufacturers in Bangladesh together with ongoing technical and spare-parts support.
Industrial Application
Fabric roll slitting is a common cutting-room requirement wherever wide fabric rolls must be divided into narrower rolls or strips before further processing, such as for tape, webbing, interlining, non-woven material or narrow-width garment components. The XC-2100AS is built to handle this stage of production, holding a fabric roll on its clamp shaft while the cutting carriage travels across the material width to produce multiple slit strips at once. This reduces the manual handling and repeated measuring that manual slitting methods normally require.
How It Works
The machine clamps a fabric roll along its working width and rotates the roll while a circular blade carriage, driven by dual servo motors, moves precisely along the X-axis. Cutting positions are programmed through the PLC and touchscreen interface, allowing the operator to set multiple strip widths and quantities before the machine runs the cutting cycle automatically. A variable frequency drive allows the spindle and circular blade speed to be adjusted according to the fabric being processed.
Important Functions and Features
- Multi-Stage Cutting System – the XC-2100AS can cut up to nine different strip sizes from a single fabric roll, with width and quantity set per job, reducing the need to reload or reset the machine for varied cutting patterns.

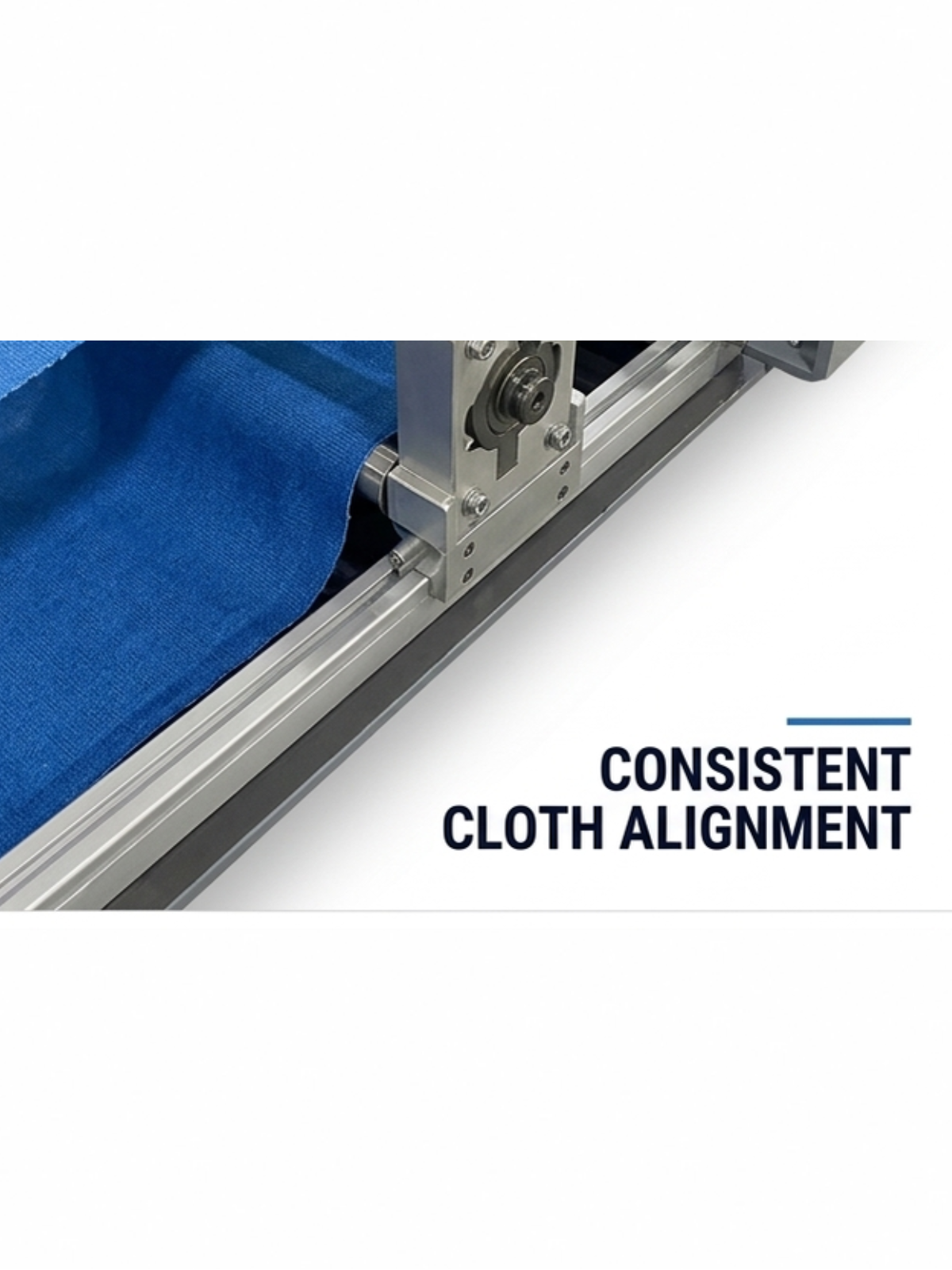

- Dual Servo Drive – precise X-axis positioning control on the cutting carriage supports accurate, repeatable strip widths and consistent slitting quality across the full roll.
- Smart Chuck Design – the clamping and chuck arrangement is designed to improve material utilization and reduce avoidable fabric waste during the slitting process.

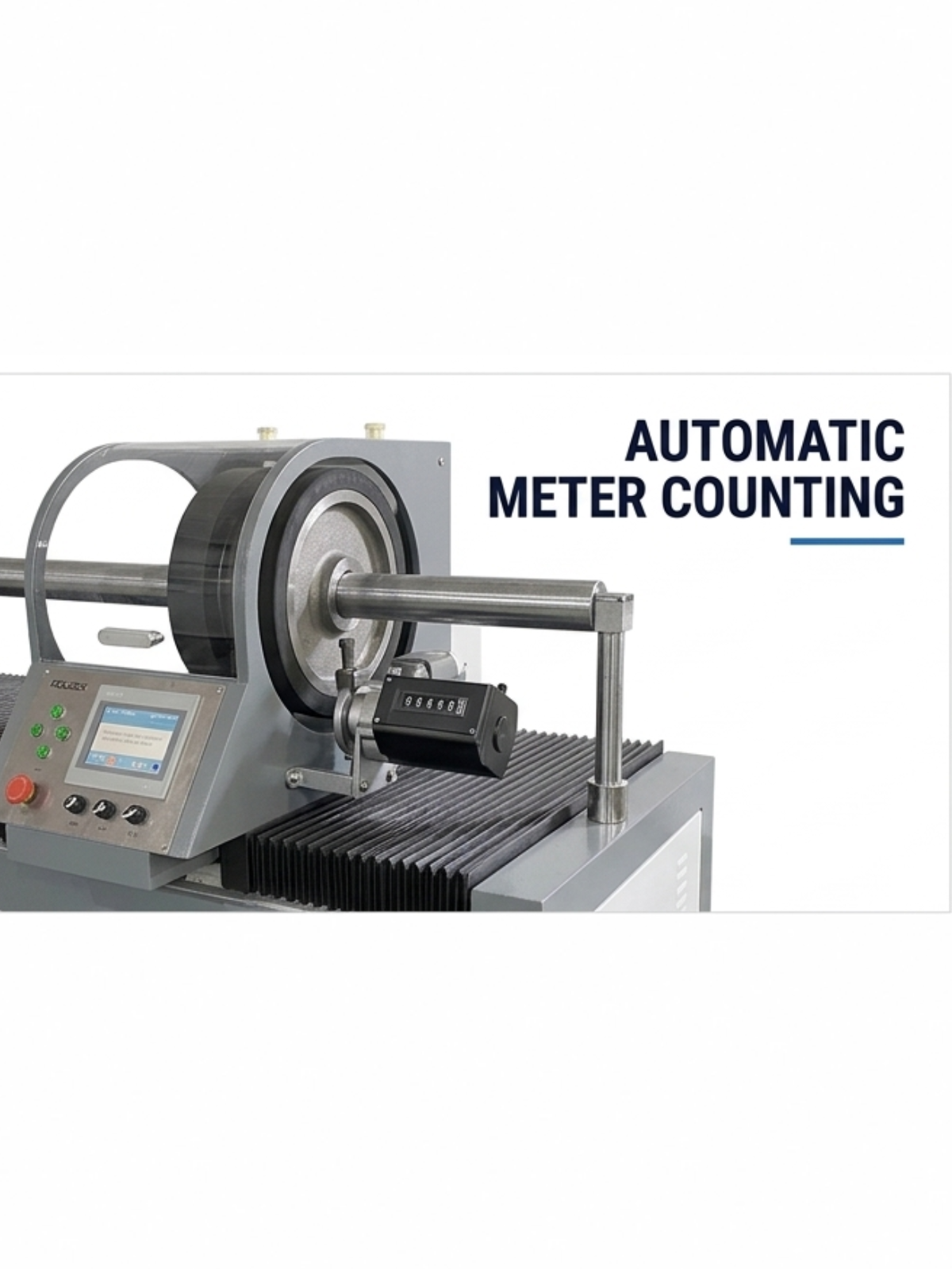

- PLC and Touchscreen Control – programmable parameter input through a touchscreen interface makes it straightforward for operators to set up and repeat cutting jobs.

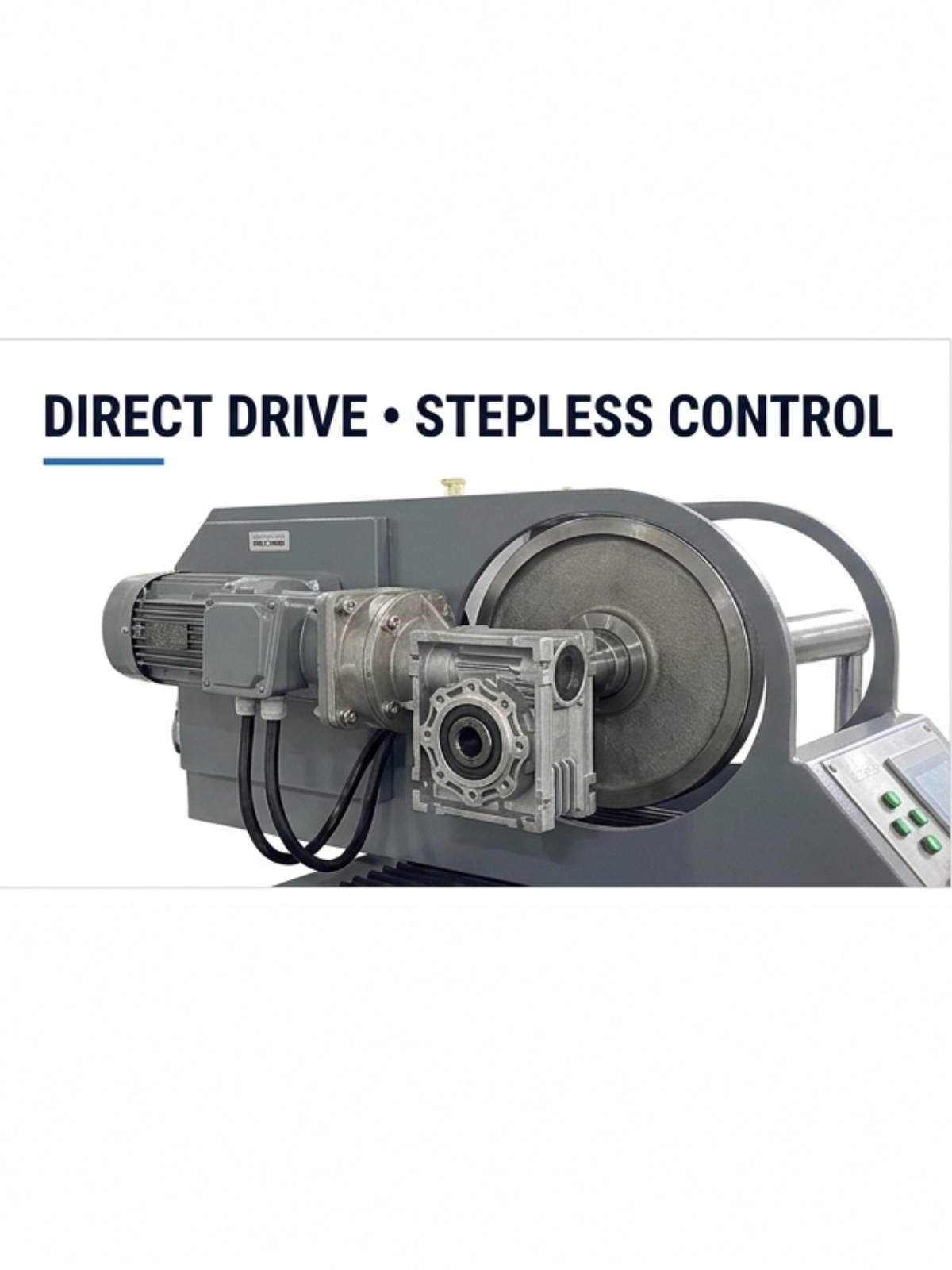

- Variable Frequency Drive – electronically adjustable spindle and circular blade speed allows the machine to be matched to different fabric types and cutting conditions.
Optional accessories include an oil/mist sprayer for specialty fabrics and a dust collection device, which can be added according to the specific fabric and factory environment.
Technical Details
| Model | XC-2100AS |
|---|---|
| Brand | KOLEEX |
| Machine Type | Automatic Fabric Roll Slitting Machine |
| Control System | PLC with Touchscreen Interface |
| Cutting System | Dual Servo Drive, Multi-Stage (up to 9 sizes) |
| Maximum Clamp Fabric Width | 2100mm |
| Max. Fabric Roll Diameter | Ø300mm |
| Min. Cutting Width | 5mm |
| Voltage & Power | AC 1-Phase, 220V/50Hz, 3.75kW |
| Machine Dimensions | 2820 x 1210 x 1340mm |
Why Choose XC-2100AS?
- Multi-stage cutting delivers up to nine sizes
- Dual servo X-axis drive ensures accurate, consistent slitting
- Smart chuck design reduces material waste
- PLC and touchscreen simplify parameter programming
- Variable frequency drive allows adjustable blade speed
- Optional oil or mist sprayer supports specialty fabrics
- Optional dust collection keeps the work area clean
- Compact footprint suited to garment factories
- TSLMAC provides ongoing spare-parts and technical support
- TSLMAC can source components and arrange servicing
Practical Production Benefits
For garment and textile factories, an automatic slitting machine of this type can support more consistent strip widths compared with manual cutting, reduce the avoidable human error associated with repeated manual measurement, and allow cutting-room staff to prepare multiple strip sizes from one roll without extensive machine resetting between jobs. The programmable multi-stage cutting function also supports better production planning, since a sequence of required strip widths can be set up in advance and repeated for future rolls of the same specification.
Verified Technical Configuration
The XC-2100AS is built for a maximum clamp fabric width of 2100mm, with a maximum fabric roll diameter of approximately Ø300mm and a minimum cutting width of 5mm. It is designed to work with a paper core inner diameter of approximately Ø38mm and runs on an AC 1-Phase, 220V/50Hz, 3.75kW power supply. The machine’s overall footprint is approximately 2820 x 1210 x 1340mm. These figures are useful references for factory floor planning and electrical preparation ahead of installation.
TSLMAC After-Sales and Spare-Parts Support
Like any cutting-room machinery, the XC-2100AS will require periodic maintenance, consumables such as circular blades, and occasional replacement of mechanical or electrical components over its working life. TSLMAC gives particular attention to spare-parts support for fabric cutting and slitting equipment, working to stock, source and arrange components such as blades, drive parts and control elements as required, so that factories can keep the machine running with minimal disruption. TSLMAC’s technical personnel are also available to assist with troubleshooting, servicing and preventive maintenance for this type of machine.
Software and Control Support
Because the XC-2100AS is operated through a PLC and touchscreen interface, TSLMAC can also assist with machine configuration and control-related technical support where needed, helping factories get the programmable cutting functions set up correctly for their production requirements.
Sourcing Support
TSLMAC maintains a broad network of machinery and spare-parts suppliers and can also source related equipment or components that are not immediately available locally. For urgent requirements, TSLMAC can arrange expedited sourcing from China, including approximately 48-hour arrangements where the specific requirement, supplier availability and logistics route permit.
Long-Term Technical Partnership
TSLMAC approaches the supply of machinery such as the XC-2100AS as the beginning of an ongoing technical relationship rather than a single transaction. Depending on a factory’s needs, this can continue through spare-parts supply, servicing, technical consultation and machinery-selection guidance as production requirements evolve.
Service Contracts and Consultation
For factories that prefer a structured maintenance approach, TSLMAC can also work through ongoing service arrangements covering routine inspection, preventive maintenance and spare-parts planning for this and other cutting-room equipment. TSLMAC’s technical team is also available to advise on machinery selection appropriate to a factory’s fabric types and production volumes.
Request a Quotation
To confirm current availability, pricing and configuration options for the KOLEEX XC-2100AS Automatic Fabric Roll Slitting Machine, contact TSLMAC directly. TSLMAC’s technical team can also advise on spare parts, servicing and sourcing support for this machine based on your factory’s specific requirements.
